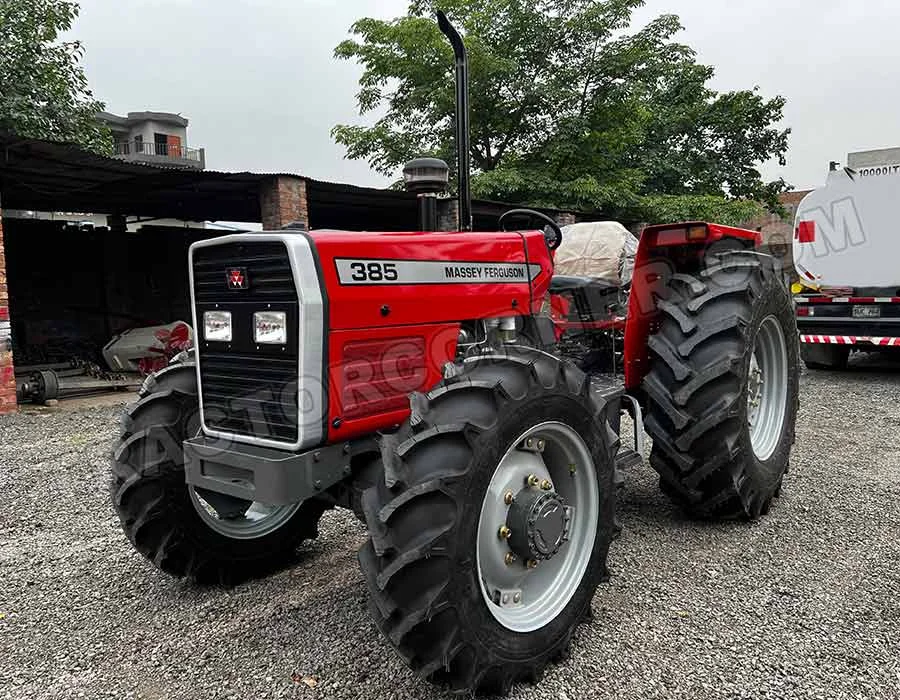

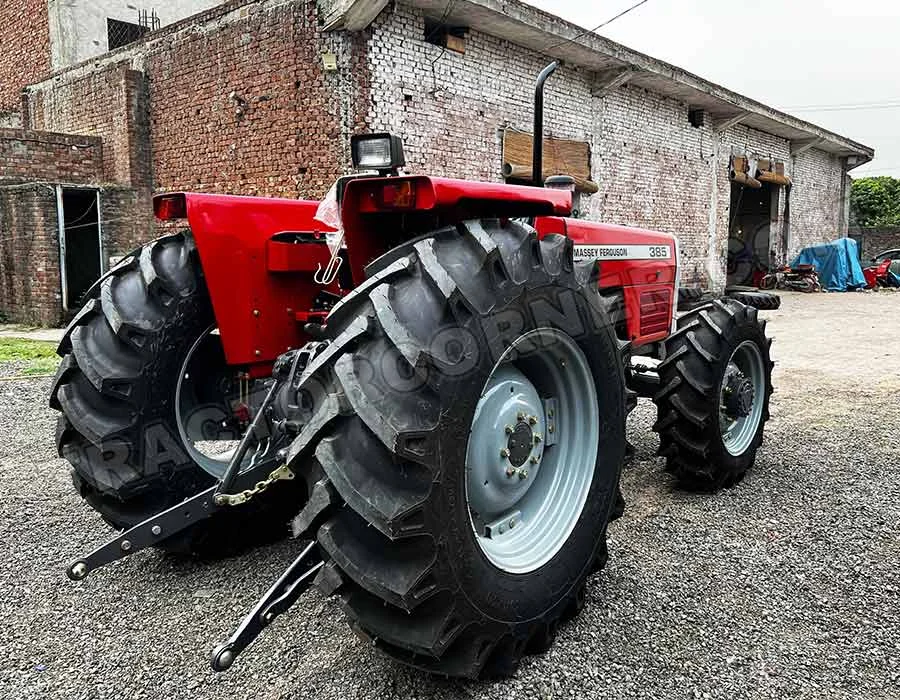

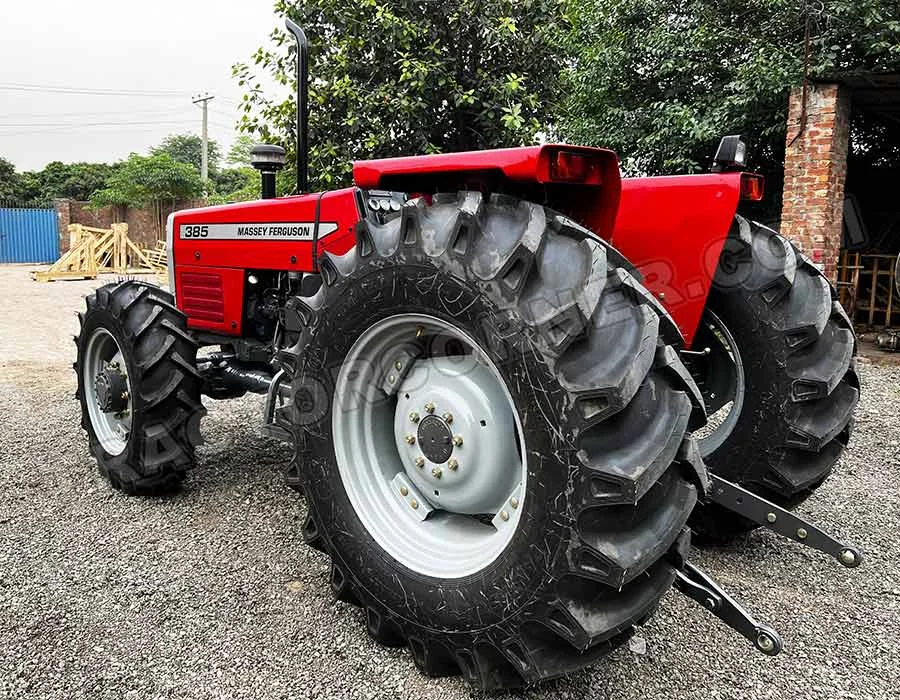

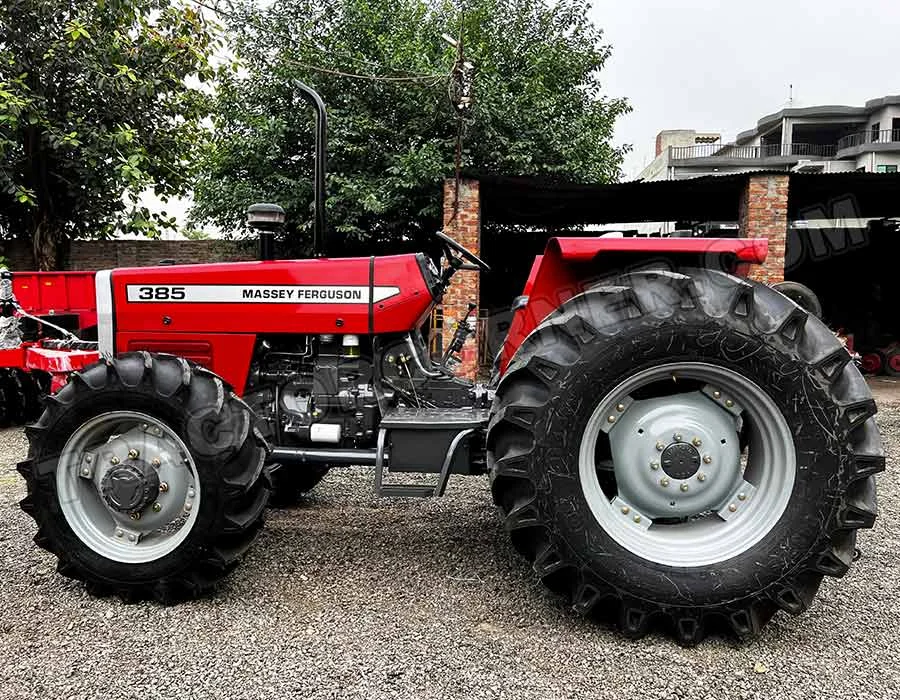

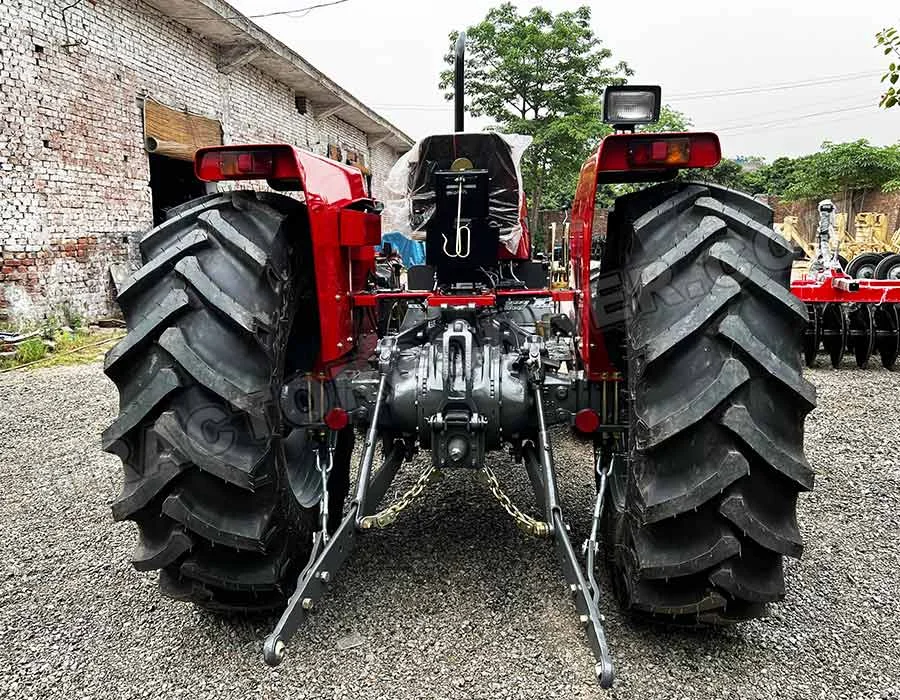

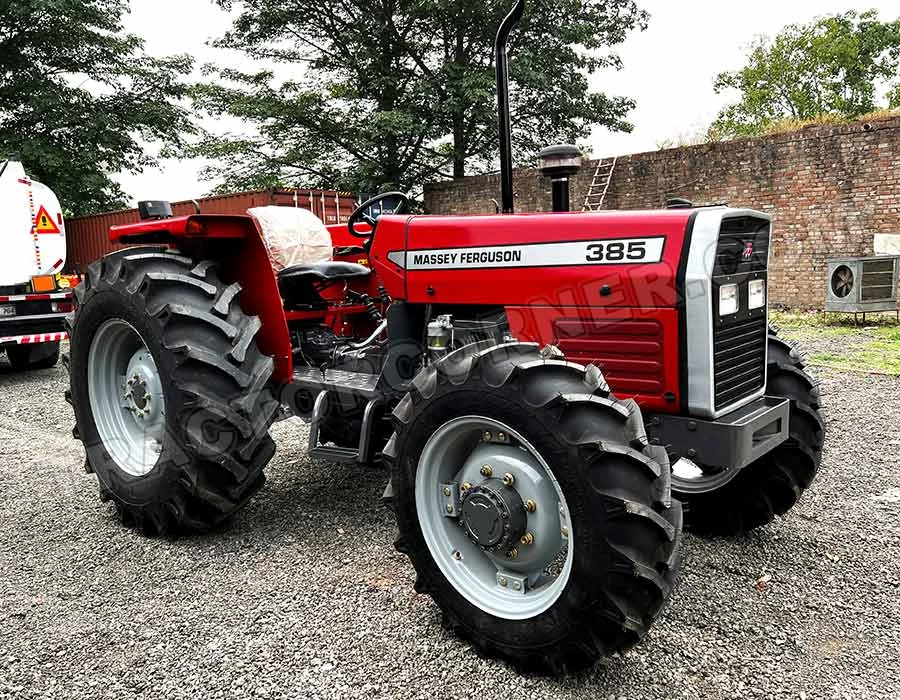

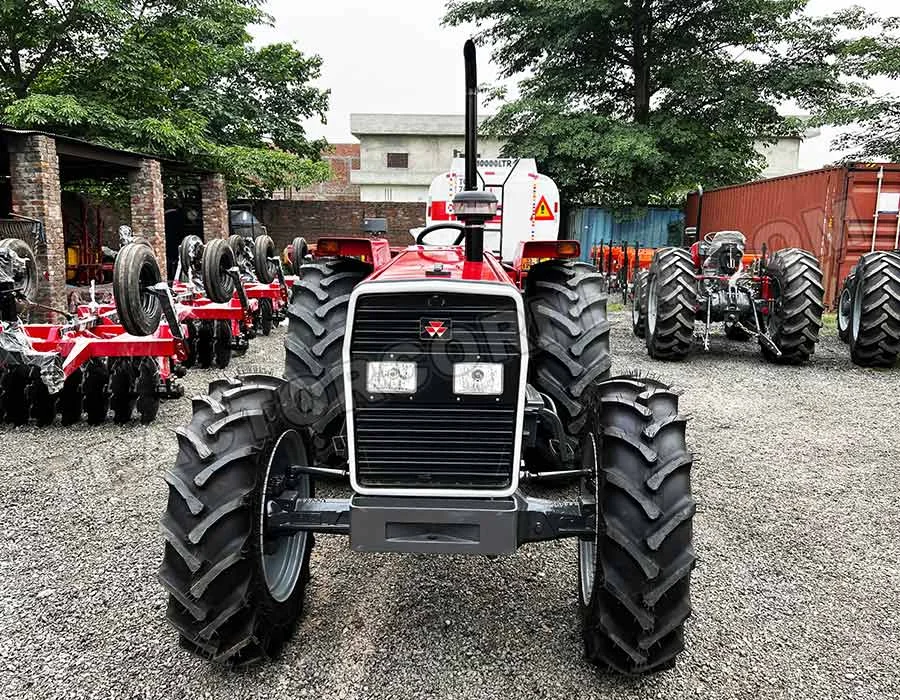

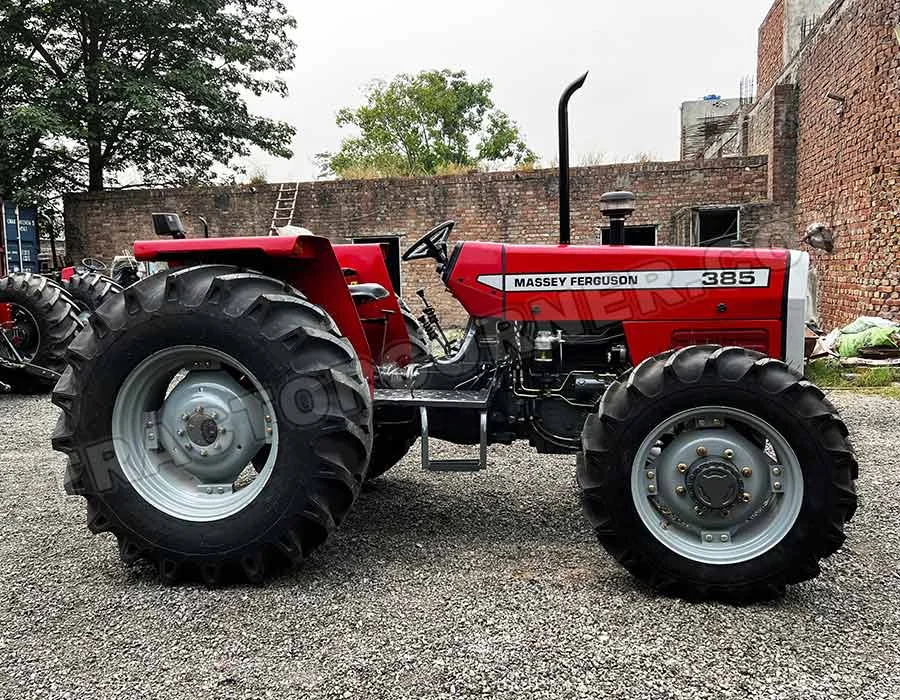

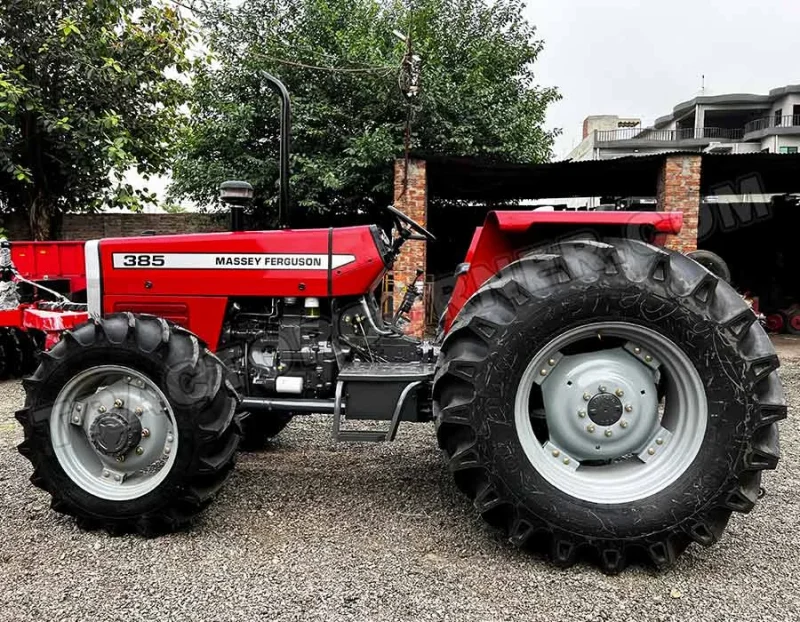

Massey Ferguson 385 4WD Tractor – Built for Fiji’s Farming Needs
Tractor Corner Fiji proudly offers the Massey Ferguson 385 4WD Tractor, a top-tier solution for Fijian farmers seeking power and reliability. Engineered for a variety of agricultural demands, this tractor delivers exceptional results, even in challenging terrains.
Powerful & Efficient Performance
Equipped with an 85HP engine, the Massey Ferguson 385 excels in heavy-duty tasks like ploughing, tilling, and transporting. Its superior fuel efficiency helps reduce costs while maximizing output, making it the ideal choice for sustainable farming.
4WD Capability & Modern Technology
The advanced 4WD capability ensures remarkable traction and stability on uneven terrain, enhancing efficiency in Fijian farmlands. Additionally, its user-friendly hydraulic controls provide precision and ease for a wide range of applications.
Boost your productivity with the Massey Ferguson 385 4WD Tractor, now available at Tractor Corner Fiji—your trusted agricultural machinery supplier in Fiji.
Performance | |
Engine Power at 2,200 rpm> | 85 (B.S) hp |
Torque at 1,600 rpm | 291 Nm |
PTO Power at 2,200 | 70 hp |
Engine Speed | |
*Certified at BS AU 141a 1971 | **Manufacturer’s estimate |
Electrics | |
Voltage | 12V, Negative Earth |
Battery | 110 Ah |
Starter/ Alternator | 2.8 kW / 45 Amp |
Transmission | |
Type | Sliding Spur |
Number of Gears | 8 Forward, 2 Reverse |
Road Speed at 2,200 | Engine RPM with 18.4/15-30 rear tyres |
Gear | Speed (km/hr) |
Forward 1 (First Low) | 2.7 |
Forward 2 | 3.7 |
Forward 3 | 5.1 |
Forward 4 | 6.8 |
Forward 5 (First High) | 10.4 |
Forward 6 | 15.2 |
Forward 7 | 20.8 |
Forward 8 | 27.9 |
Reverse 1 (Low) | 3.5 |
Reverse 2 (High) | 14.1 |
Hydraulics | |
Functions | Draft Control, Position Control Response Control, Constant Pumping |
Pump Type | 4 Piston, Ferguson Pump |
Oil Flow | 16.7 ltr/min |
Pressure | 21 Mpa (205 bars) at normal operating |
Lift Capacity with Lower | 2,145 kg |
Links Horizontal | |
Lower Links | With Cat. I & II Interchangeable Balls |
Rear Axle & Brakes | |
Axle Type | Straddle with apicyclic redution unit |
Brake Type | Oil immersed, Multi-disc |
Braking Area | 1.774 sq. cm |
Brake Actuation | Mechanical |
Parking Brake | Hand Lever Operated |
Tyres | |
Front | 12.4 / 11 – 24 (6PR) |
Rear | 18.4 / 15 – 30 (6PR) |
Clutch | |
Type | Dual |
Diameter | 305 x 254 mm |
Lining Material | Cerametallic |
Front Axle | |
Type | Parallel Drive |
Engagement | Mechanical |
Steering | |
Type | Hydrostatic |
Track Adjustment | |
Front Axle | 1,376 – 1,944 mm |
Rear Axle | 1,423 – 2,134 mm |
Engine | |
Make / Type | Diesel / 4.41 |
No. of Cylinders | 4 |
Injection | Direct |
Bore | 101 mm |
Stroke | 127 mm |
Capacity (litres) | 4.1L |
Compression Ratio | 15.3:1 |
Aspiration | Natural |
Starting Aid | Thermostart |
Throttle Control | Hand and Feet |
Cooling | Water |
Air Cleaner Type | Oil Bath |
Air Pre-Cleaner | Over Bonnet |
Fuel Filter | Dual, High Capacity |
Exhaust | Vertical Muffler |
Oil Cooler | Water Cooled |
Power Take Off | |
Type | Live |
Engine Speed at 540 pto rpm | 1,789 rpm |
Shaft Diameter | 35mm |
No. of Splines | 6 |
Instrumentation | |
Guages | Technometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature |
Warning Lights | Direction Indicators, Electric Charge, Headlight Main Beam, Low Engine Oil Pressure, 4WD Indication Lights & Auxiliary Socket |
Weight & Dimensions | With 12.4 / 11-24 Front & 18.4 / 15.30 rear with fuel, oil & water |
Weight | |
Gross Weight | 2,760 kg |
Dimensions | |
Wheel Base | 2,350 mm |
Overall Length | 3,810 mm |
Overall Width (Min) | 1,817 mm |
Height | |
Over Exhaust | 2,485 mm |
Over Steering Wheel | 1,781 mm |
Turning Circle | |
Without Brakes | 8,518 mm |
Ground Clearance | |
Under Gear Box | 501 mm |
Under 4WD Front Axle | 395 mm |
Capacities | |
Fuel Tank | 108.0L |
Engine Pump | 7.5 L |
Cooling System | 15.2L |
Hydrostatic Steering Reservior | 47.4L |
Hydraulic System | 2.0L |
Oil Bath Air-Cleaner | 0.7 L |
Brake Oil | 0.25L |
4WD Front Axle Differential | 5.6L |
Hub Each Side | 1.0L |
Standard Equipment | |
Weight frame without weights, standard tool box with set of tools, Top Link, Top Link End Cat-I, Cat I & II balls, Check Chains, Spring Suspension Seat, Flat Top Fender & Operator’s Manual | |
Optional Equipment | |
Front End Weights, Swinging Draw Bar, Sun Canopy, Pintle Hook | |
Operator Area | |
Seat | Cushioned |
Fenders | Flat Top |
Tool Box | Standard |
