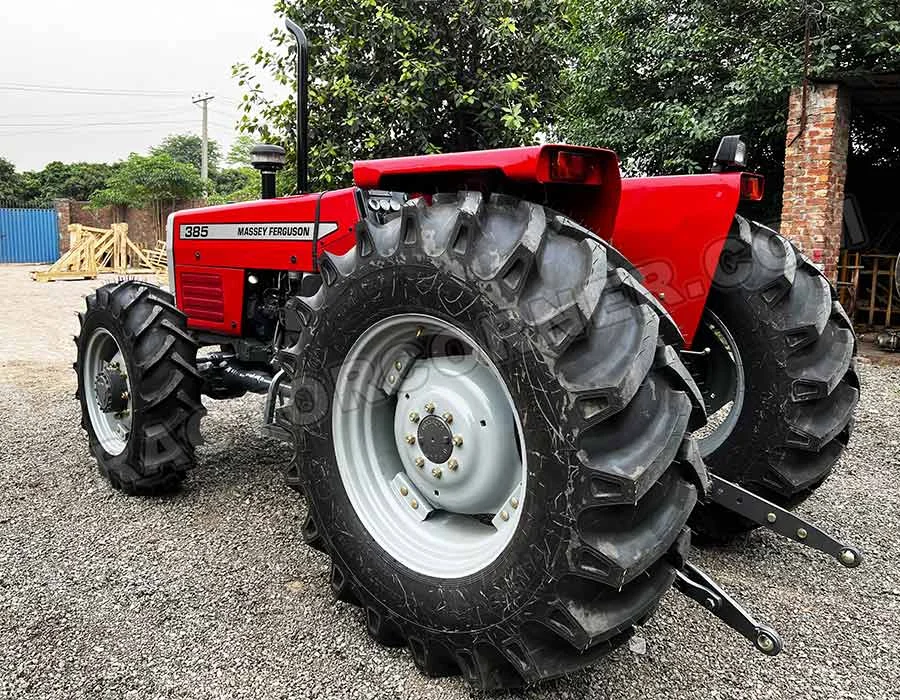

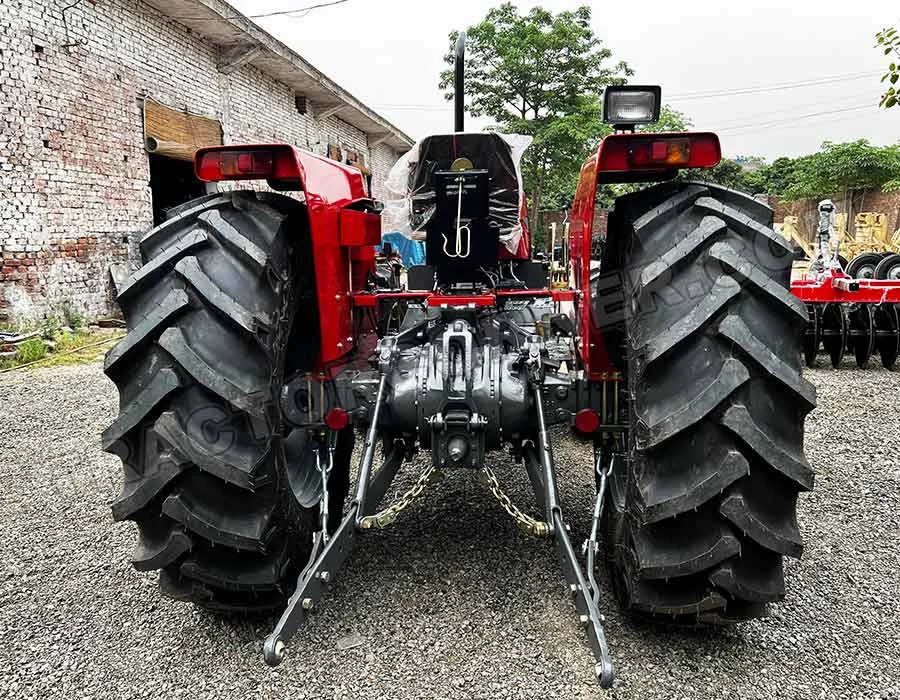

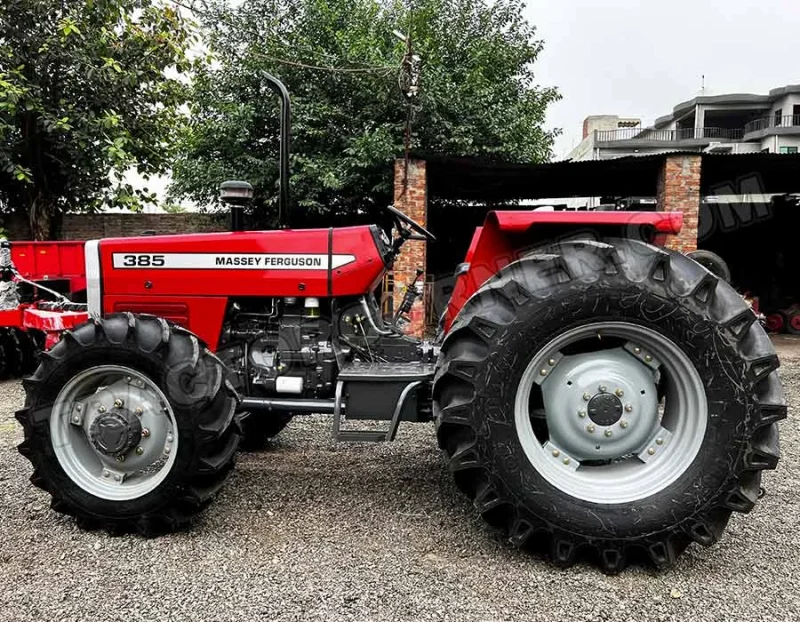

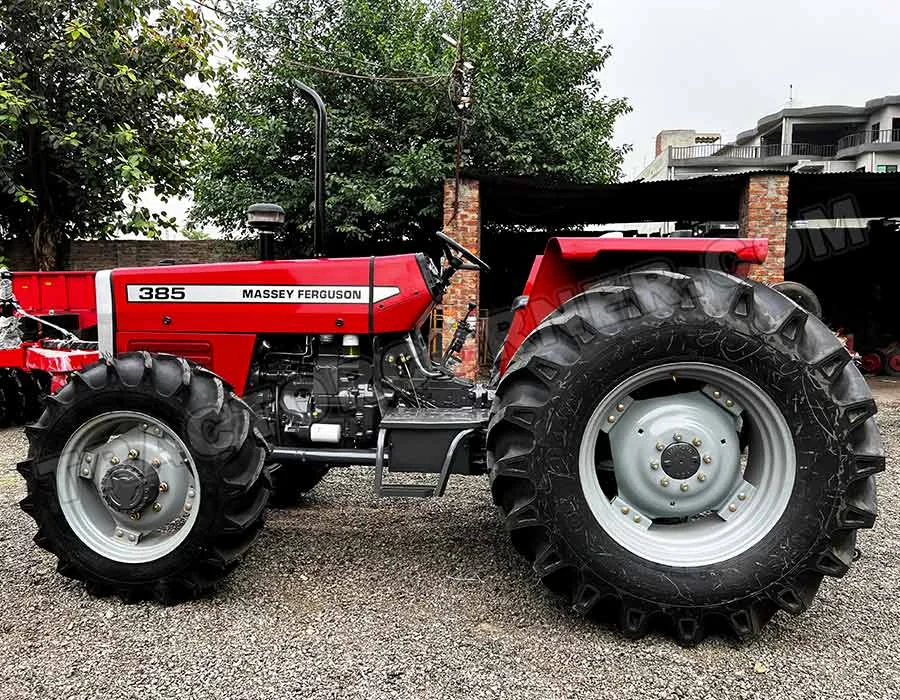

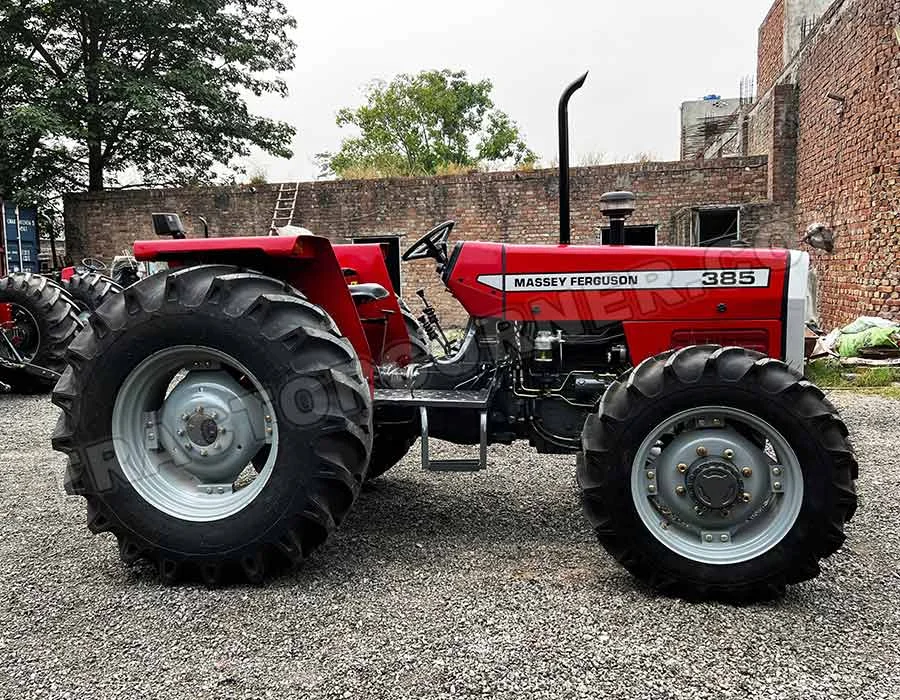

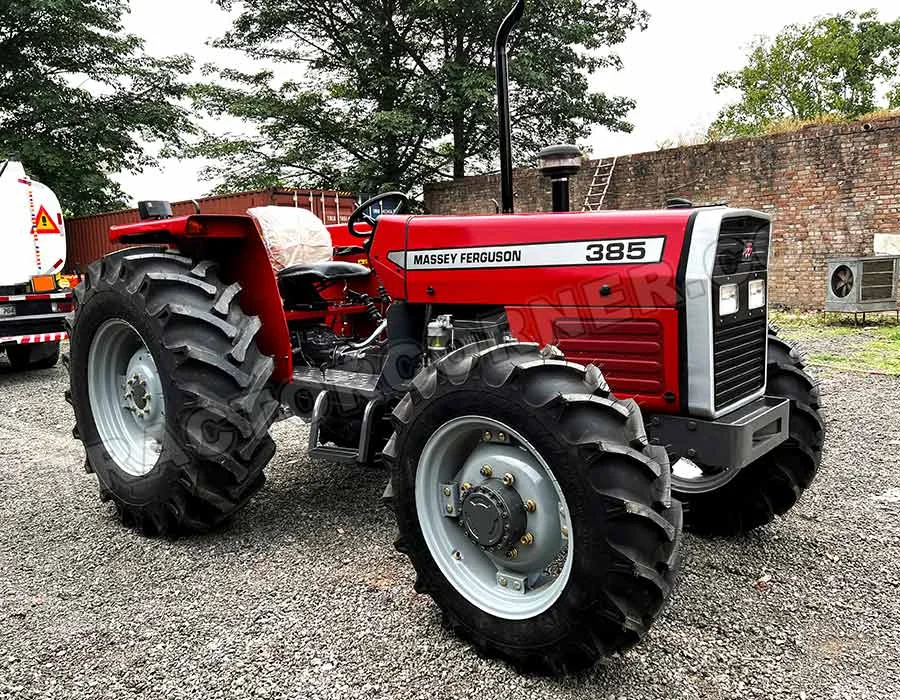

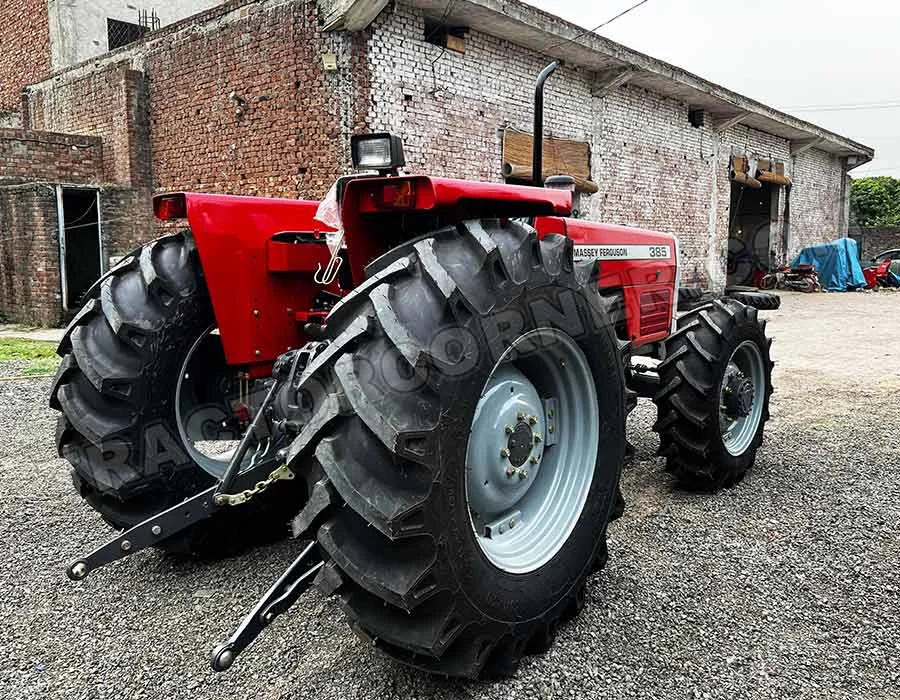

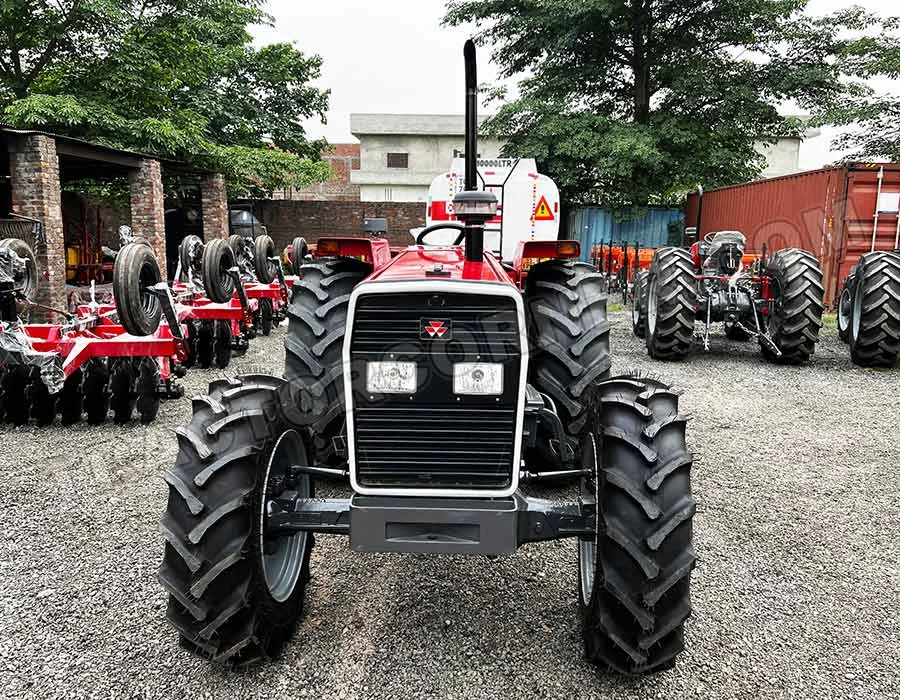

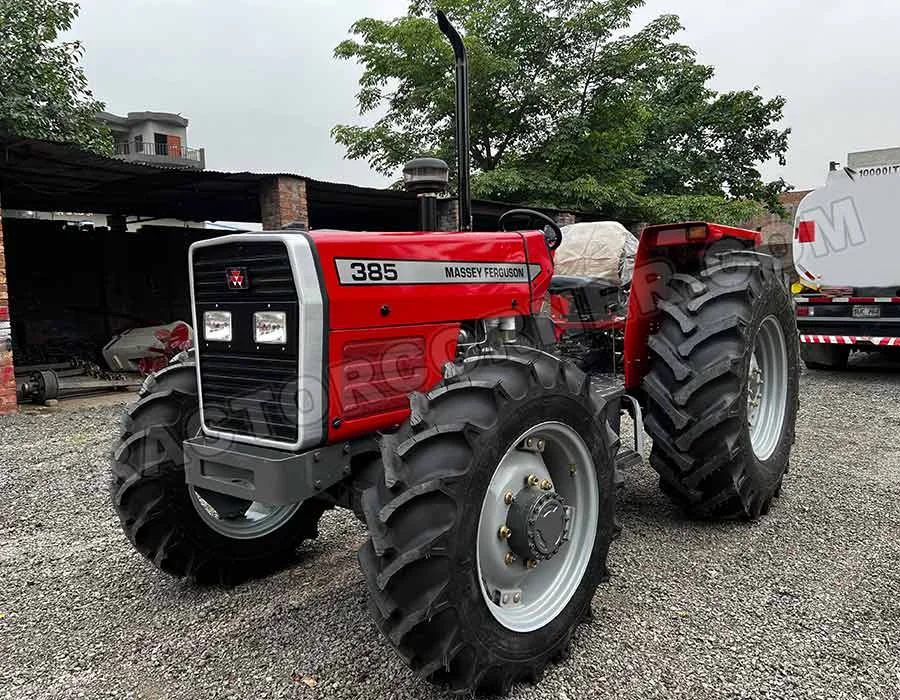

Massey Ferguson 385 4WD Tractor – Power and Performance for Jamaican Farms
The Massey Ferguson 385 4WD Tractor is a top-tier choice for farmers in Jamaica and the Caribbean. Built to tackle the toughest agricultural tasks, this tractor combines strength, durability, and modern design to enhance your farming productivity.
Outstanding Four-Wheel Drive Efficiency
Equipped with a reliable 4WD system, the MF-385 provides excellent traction and control on uneven and challenging terrains, making it ideal for the region’s diverse landscapes.
High-Powered Engine for Superior Performance
With a powerful 85HP diesel engine, the Massey Ferguson 385 offers outstanding performance, whether you’re ploughing fields, hauling produce, or managing extensive farmland.
Adaptable for Versatile Farm Operations
This tractor supports a wide range of tractor attachments, making it adaptable for multiple tasks like ploughing, harvesting, and irrigation. Its versatility ensures year-round efficiency on your farm.
Get the job done with ease using the Massey Ferguson 385 4WD Tractor. Available now at Tractor Corner Jamaica, your trusted supplier of quality Massey Ferguson tractors in Jamaica.
| Performance | |
| Engine Power at 2,200 rpm> | 85 (B.S) hp |
| Torque at 1,600 rpm | 291 Nm |
| PTO Power at 2,200 | 70 hp |
| Engine Speed | |
| *Certified at BS AU 141a 1971 | **Manufacturer’s estimate |
| Electrics | |
| Voltage | 12V, Negative Earth |
| Battery | 110 Ah |
| Starter/ Alternator | 2.8 kW / 45 Amp |
| Transmission | |
| Type | Sliding Spur |
| Number of Gears | 8 Forward, 2 Reverse |
| Road Speed at 2,200 | Engine RPM with 18.4/15-30 rear tyres |
| Gear | Speed (km/hr) |
| Forward 1 (First Low) | 2.7 |
| Forward 2 | 3.7 |
| Forward 3 | 5.1 |
| Forward 4 | 6.8 |
| Forward 5 (First High) | 10.4 |
| Forward 6 | 15.2 |
| Forward 7 | 20.8 |
| Forward 8 | 27.9 |
| Reverse 1 (Low) | 3.5 |
| Reverse 2 (High) | 14.1 |
| Hydraulics | |
| Functions | Draft Control, Position Control Response Control, Constant Pumping |
| Pump Type | 4 Piston, Ferguson Pump |
| Oil Flow | 16.7 ltr/min |
| Pressure | 21 Mpa (205 bars) at normal operating |
| Lift Capacity with Lower | 2,145 kg |
| Links Horizontal | |
| Lower Links | With Cat. I & II Interchangeable Balls |
| Rear Axle & Brakes | |
| Axle Type | Straddle with apicyclic redution unit |
| Brake Type | Oil immersed, Multi-disc |
| Braking Area | 1.774 sq. cm |
| Brake Actuation | Mechanical |
| Parking Brake | Hand Lever Operated |
| Tyres | |
| Front | 12.4 / 11 – 24 (6PR) |
| Rear | 18.4 / 15 – 30 (6PR) |
| Clutch | |
| Type | Dual |
| Diameter | 305 x 254 mm |
| Lining Material | Cerametallic |
| Front Axle | |
| Type | Parallel Drive |
| Engagement | Mechanical |
| Steering | |
| Type | Hydrostatic |
| Track Adjustment | |
| Front Axle | 1,376 – 1,944 mm |
| Rear Axle | 1,423 – 2,134 mm |
| Engine | |
| Make / Type | Diesel / 4.41 |
| No. of Cylinders | 4 |
| Injection | Direct |
| Bore | 101 mm |
| Stroke | 127 mm |
| Capacity (litres) | 4.1L |
| Compression Ratio | 15.3:1 |
| Aspiration | Natural |
| Starting Aid | Thermostart |
| Throttle Control | Hand and Feet |
| Cooling | Water |
| Air Cleaner Type | Oil Bath |
| Air Pre-Cleaner | Over Bonnet |
| Fuel Filter | Dual, High Capacity |
| Exhaust | Vertical Muffler |
| Oil Cooler | Water Cooled |
| Power Take Off | |
| Type | Live |
| Engine Speed at 540 pto rpm | 1,789 rpm |
| Shaft Diameter | 35mm |
| No. of Splines | 6 |
| Instrumentation | |
| Guages | Technometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature |
| Warning Lights | Direction Indicators, Electric Charge, Headlight Main Beam, Low Engine Oil Pressure, 4WD Indication Lights & Auxiliary Socket |
| Weight & Dimensions | With 12.4 / 11-24 Front & 18.4 / 15.30 rear with fuel, oil & water |
| Weight | |
| Gross Weight | 2,760 kg |
| Dimensions | |
| Wheel Base | 2,350 mm |
| Overall Length | 3,810 mm |
| Overall Width (Min) | 1,817 mm |
| Height | |
| Over Exhaust | 2,485 mm |
| Over Steering Wheel | 1,781 mm |
| Turning Circle | |
| Without Brakes | 8,518 mm |
| Ground Clearance | |
| Under Gear Box | 501 mm |
| Under 4WD Front Axle | 395 mm |
| Capacities | |
| Fuel Tank | 108.0L |
| Engine Pump | 7.5 L |
| Cooling System | 15.2L |
| Hydrostatic Steering Reservior | 47.4L |
| Hydraulic System | 2.0L |
| Oil Bath Air-Cleaner | 0.7 L |
| Brake Oil | 0.25L |
| 4WD Front Axle Differential | 5.6L |
| Hub Each Side | 1.0L |
| Standard Equipment | |
| Weight frame without weights, standard tool box with set of tools, Top Link, Top Link End Cat-I, Cat I & II balls, Check Chains, Spring Suspension Seat, Flat Top Fender & Operator’s Manual | |
| Optional Equipment | |
| Front End Weights, Swinging Draw Bar, Sun Canopy, Pintle Hook | |
| Operator Area | |
| Seat | Cushioned |
| Fenders | Flat Top |
| Tool Box | Standard |
