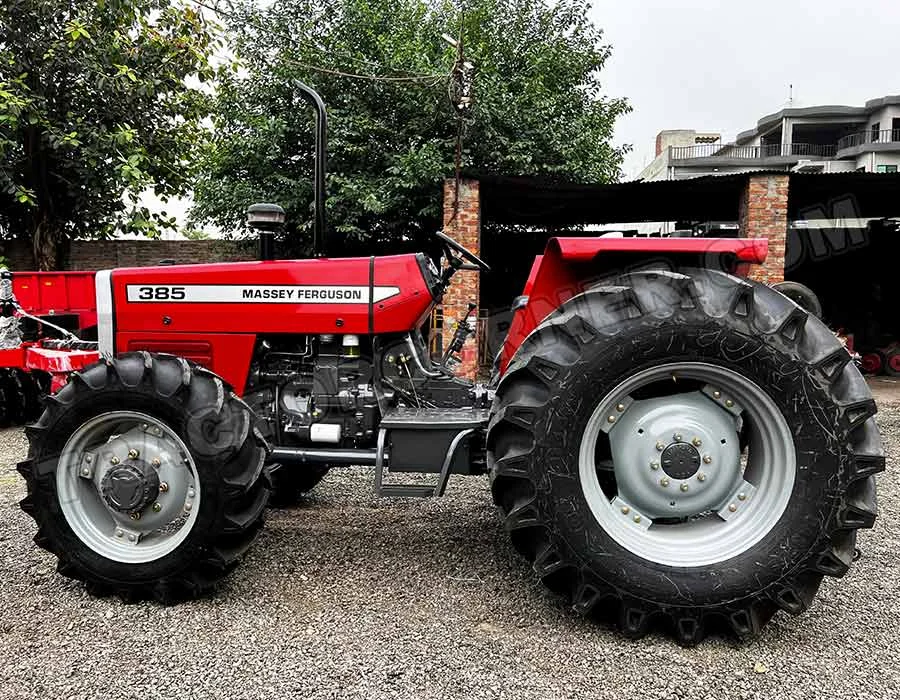

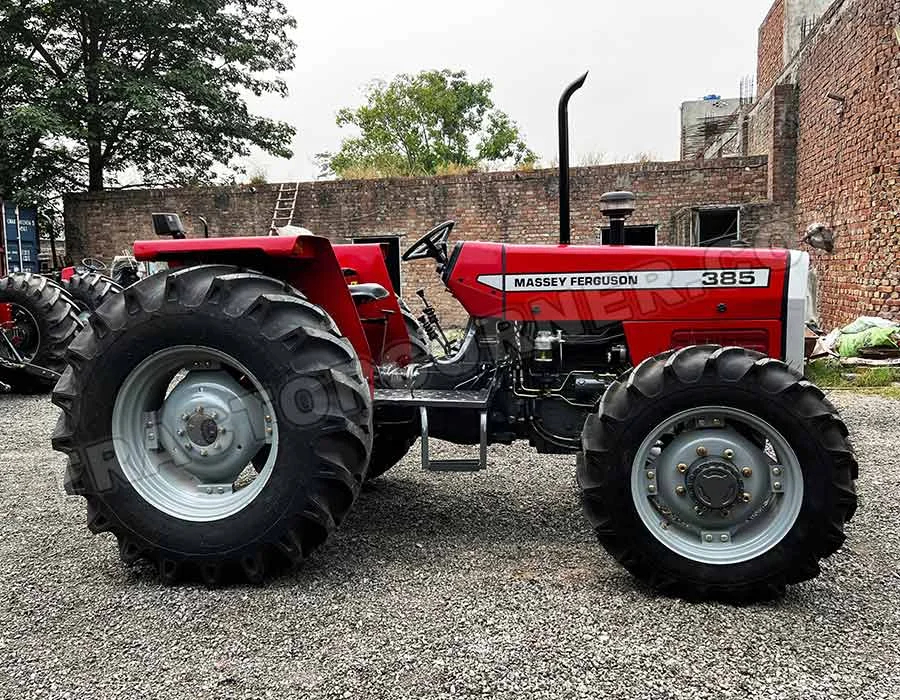

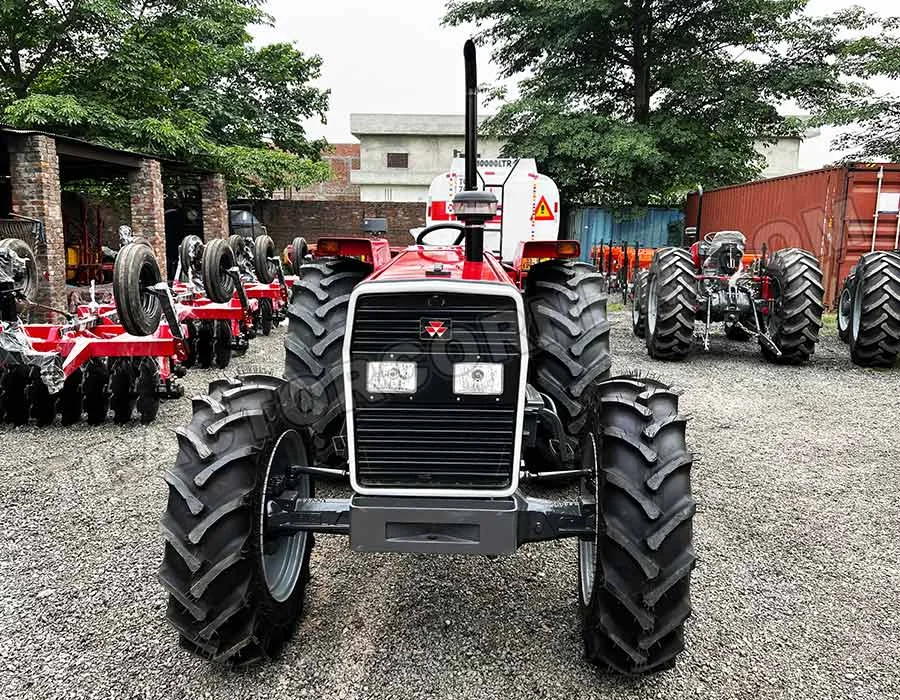

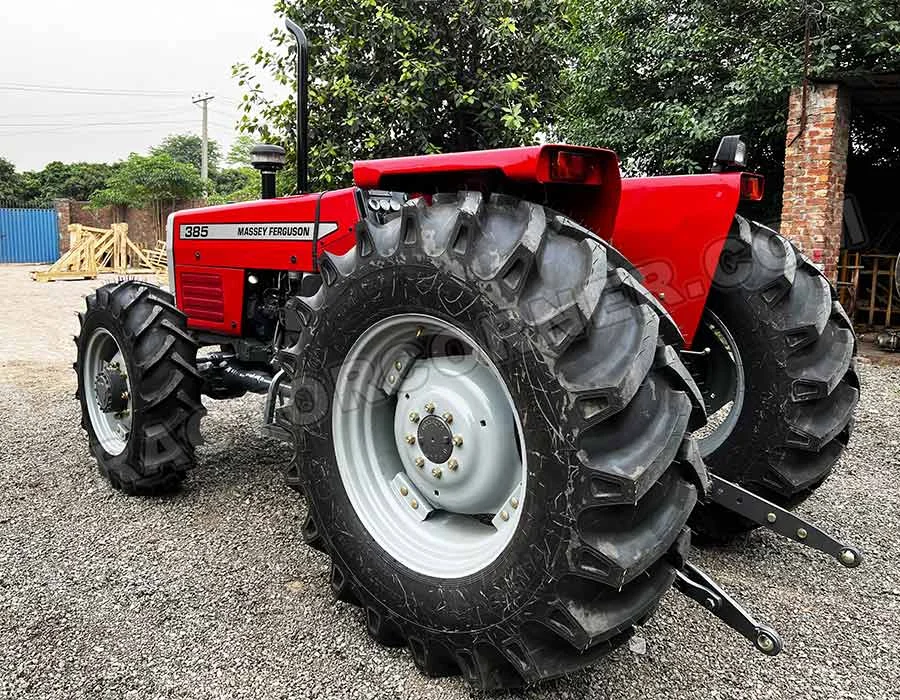

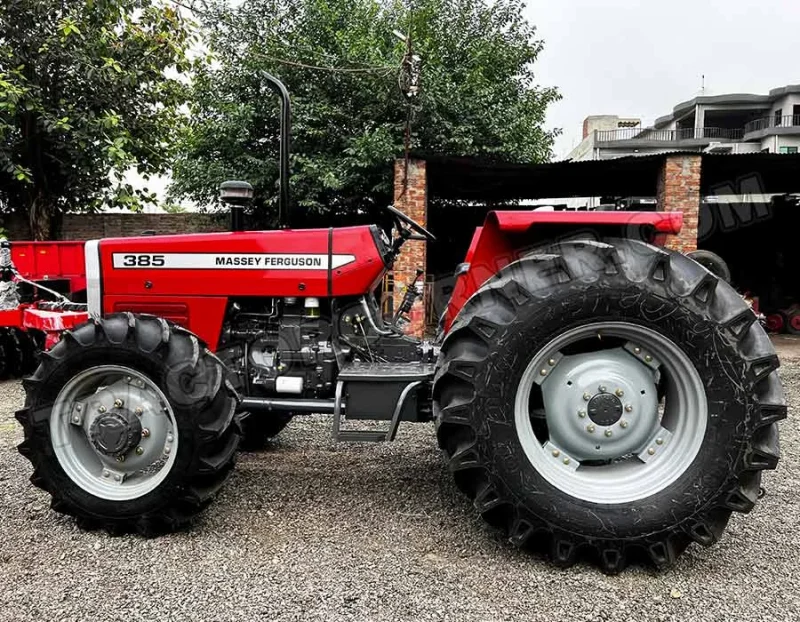

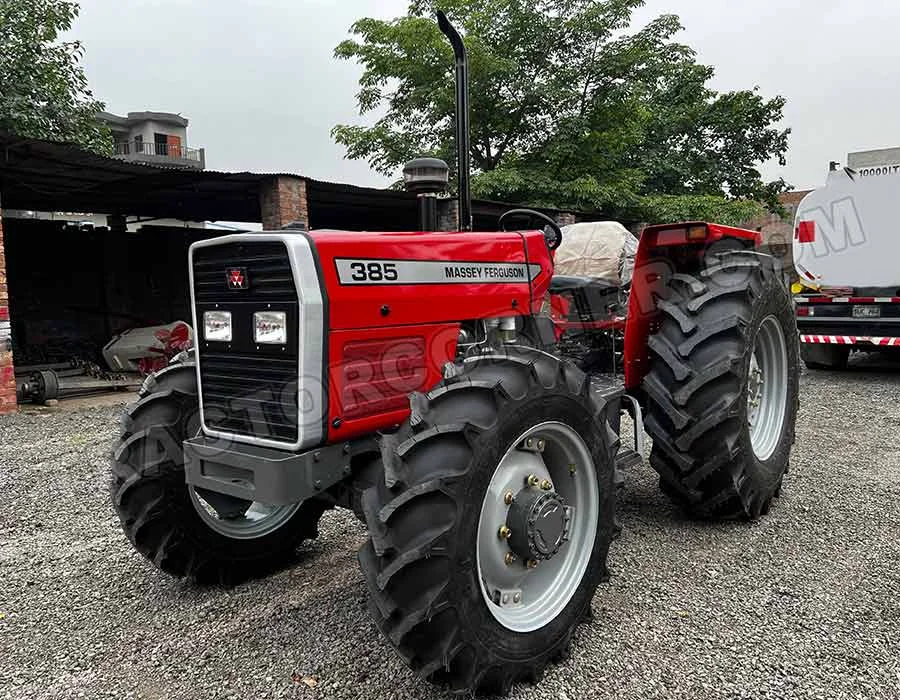

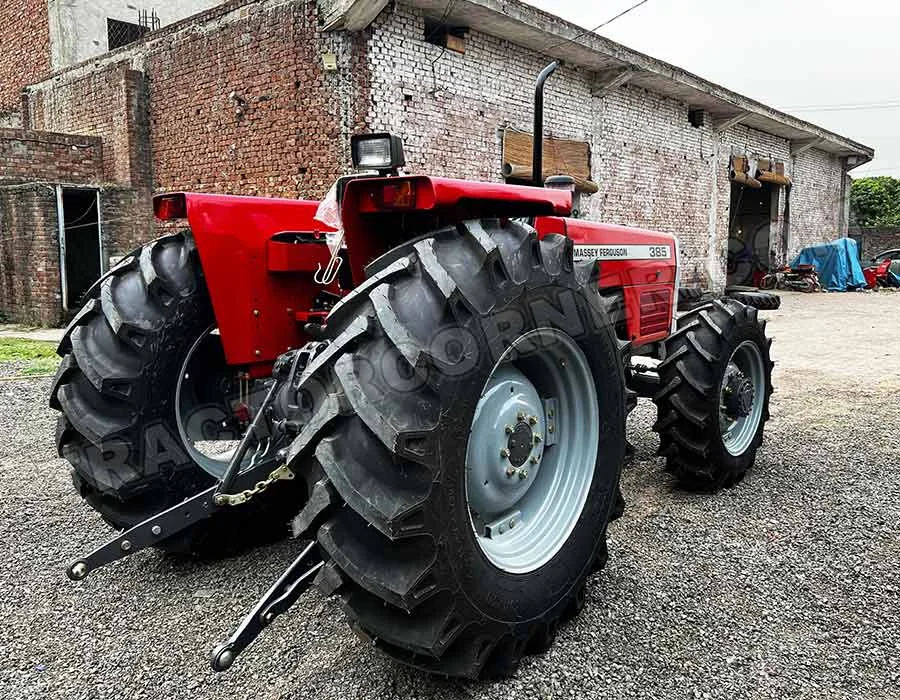

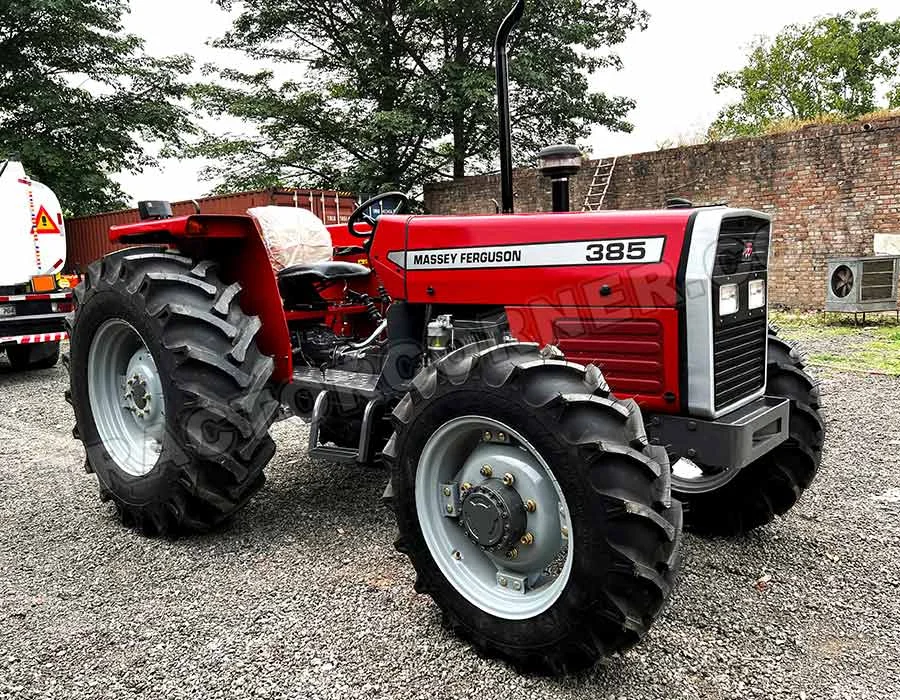

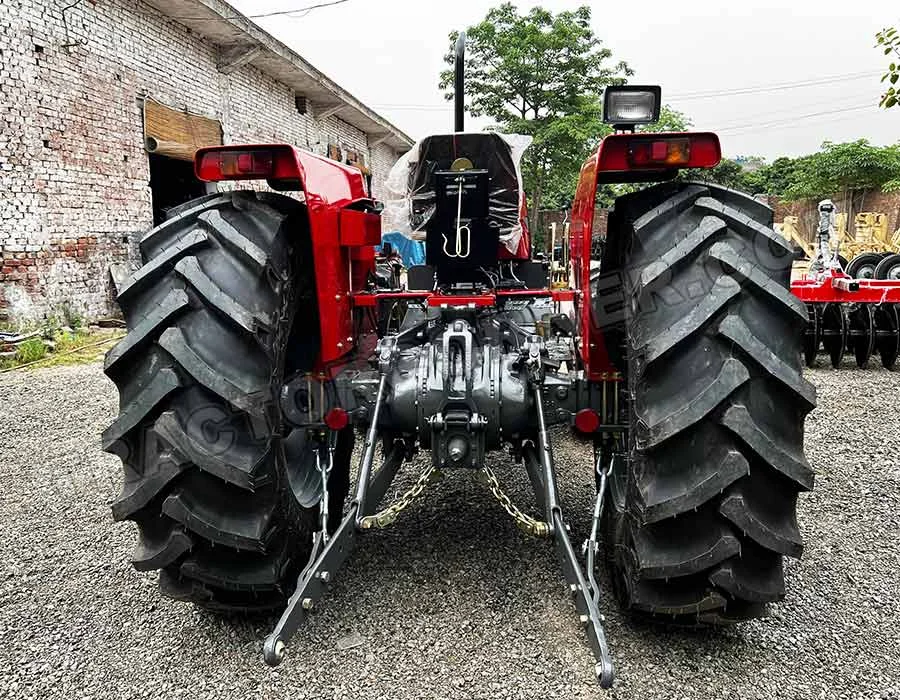

Massey Ferguson 385 4WD Tractor – Your Agribusiness Partner Across Africa
Tractor Corner Nigeria proudly offers the Massey Ferguson 385 4WD Tractor for sale in Nigeria, a tractor built to excel in Africa’s diverse agricultural landscapes. Designed for performance, durability, and reliability, it’s the ideal choice for farmers across the continent looking to boost their productivity.
Powerful Performance
Equipped with an 85HP engine, this tractor is a powerhouse for handling heavy-duty tasks like ploughing, planting, and harvesting. Its robust engine ensures consistent performance, even in the most demanding conditions, making it perfect for farms of all sizes.
4WD Adaptability
The advanced 4WD system offers unmatched traction and stability on sandy, muddy, or rough terrains. This means you can trust it to deliver in various environments, from savannas to farmlands with uneven landscapes.
Cost-Effective Farming
With excellent fuel efficiency, the Massey Ferguson 385 4WD reduces operational costs while maximizing output. Additional features like advanced hydraulics and an ergonomic design ensure comfortable and productive farming operations.
Choose the Massey Ferguson 385 4WD Tractor at Tractor Corner Nigeria and redefine farming efficiency across Africa!
Performance | |
Engine Power at 2,200 rpm> | 85 (B.S) hp |
Torque at 1,600 rpm | 291 Nm |
PTO Power at 2,200 | 70 hp |
Engine Speed | |
*Certified at BS AU 141a 1971 | **Manufacturer’s estimate |
Electrics | |
Voltage | 12V, Negative Earth |
Battery | 110 Ah |
Starter/ Alternator | 2.8 kW / 45 Amp |
Transmission | |
Type | Sliding Spur |
Number of Gears | 8 Forward, 2 Reverse |
Road Speed at 2,200 | Engine RPM with 18.4/15-30 rear tyres |
Gear | Speed (km/hr) |
Forward 1 (First Low) | 2.7 |
Forward 2 | 3.7 |
Forward 3 | 5.1 |
Forward 4 | 6.8 |
Forward 5 (First High) | 10.4 |
Forward 6 | 15.2 |
Forward 7 | 20.8 |
Forward 8 | 27.9 |
Reverse 1 (Low) | 3.5 |
Reverse 2 (High) | 14.1 |
Hydraulics | |
Functions | Draft Control, Position Control Response Control, Constant Pumping |
Pump Type | 4 Piston, Ferguson Pump |
Oil Flow | 16.7 ltr/min |
Pressure | 21 Mpa (205 bars) at normal operating |
Lift Capacity with Lower | 2,145 kg |
Links Horizontal | |
Lower Links | With Cat. I & II Interchangeable Balls |
Rear Axle & Brakes | |
Axle Type | Straddle with apicyclic redution unit |
Brake Type | Oil immersed, Multi-disc |
Braking Area | 1.774 sq. cm |
Brake Actuation | Mechanical |
Parking Brake | Hand Lever Operated |
Tyres | |
Front | 12.4 / 11 – 24 (6PR) |
Rear | 18.4 / 15 – 30 (6PR) |
Clutch | |
Type | Dual |
Diameter | 305 x 254 mm |
Lining Material | Cerametallic |
Front Axle | |
Type | Parallel Drive |
Engagement | Mechanical |
Steering | |
Type | Hydrostatic |
Track Adjustment | |
Front Axle | 1,376 – 1,944 mm |
Rear Axle | 1,423 – 2,134 mm |
Engine | |
Make / Type | Diesel / 4.41 |
No. of Cylinders | 4 |
Injection | Direct |
Bore | 101 mm |
Stroke | 127 mm |
Capacity (litres) | 4.1L |
Compression Ratio | 15.3:1 |
Aspiration | Natural |
Starting Aid | Thermostart |
Throttle Control | Hand and Feet |
Cooling | Water |
Air Cleaner Type | Oil Bath |
Air Pre-Cleaner | Over Bonnet |
Fuel Filter | Dual, High Capacity |
Exhaust | Vertical Muffler |
Oil Cooler | Water Cooled |
Power Take Off | |
Type | Live |
Engine Speed at 540 pto rpm | 1,789 rpm |
Shaft Diameter | 35mm |
No. of Splines | 6 |
Instrumentation | |
Guages | Technometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature |
Warning Lights | Direction Indicators, Electric Charge, Headlight Main Beam, Low Engine Oil Pressure, 4WD Indication Lights & Auxiliary Socket |
Weight & Dimensions | With 12.4 / 11-24 Front & 18.4 / 15.30 rear with fuel, oil & water |
Weight | |
Gross Weight | 2,760 kg |
Dimensions | |
Wheel Base | 2,350 mm |
Overall Length | 3,810 mm |
Overall Width (Min) | 1,817 mm |
Height | |
Over Exhaust | 2,485 mm |
Over Steering Wheel | 1,781 mm |
Turning Circle | |
Without Brakes | 8,518 mm |
Ground Clearance | |
Under Gear Box | 501 mm |
Under 4WD Front Axle | 395 mm |
Capacities | |
Fuel Tank | 108.0L |
Engine Pump | 7.5 L |
Cooling System | 15.2L |
Hydrostatic Steering Reservior | 47.4L |
Hydraulic System | 2.0L |
Oil Bath Air-Cleaner | 0.7 L |
Brake Oil | 0.25L |
4WD Front Axle Differential | 5.6L |
Hub Each Side | 1.0L |
Standard Equipment | |
Weight frame without weights, standard tool box with set of tools, Top Link, Top Link End Cat-I, Cat I & II balls, Check Chains, Spring Suspension Seat, Flat Top Fender & Operator’s Manual | |
Optional Equipment | |
Front End Weights, Swinging Draw Bar, Sun Canopy, Pintle Hook | |
Operator Area | |
Seat | Cushioned |
Fenders | Flat Top |
Tool Box | Standard |
