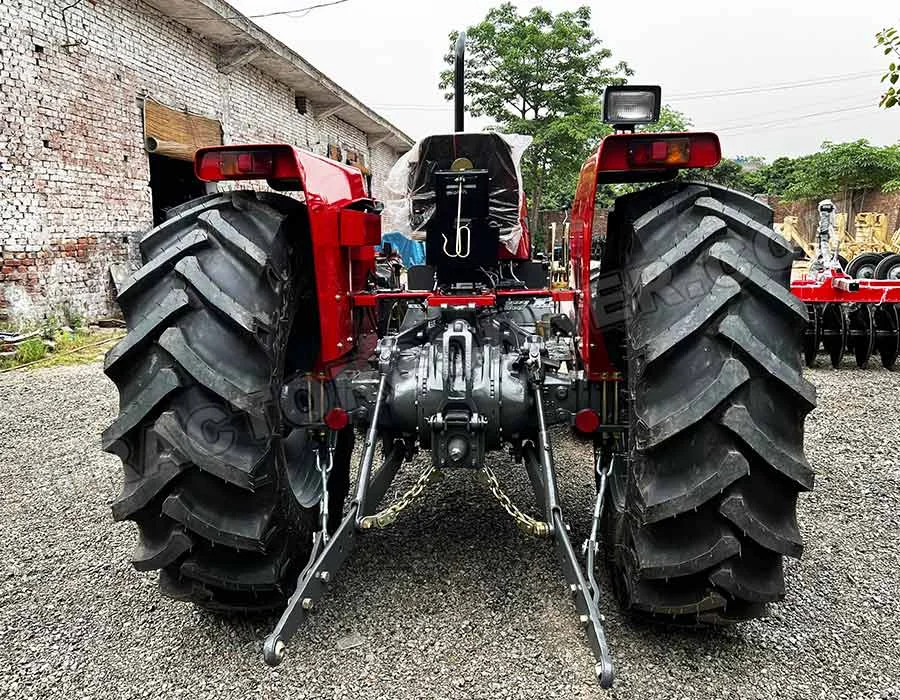

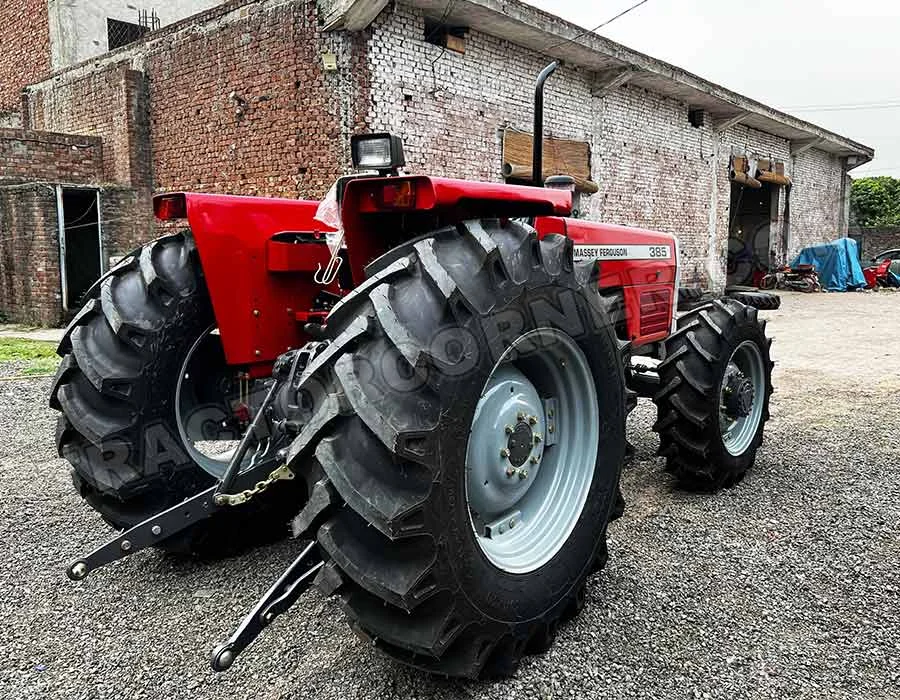

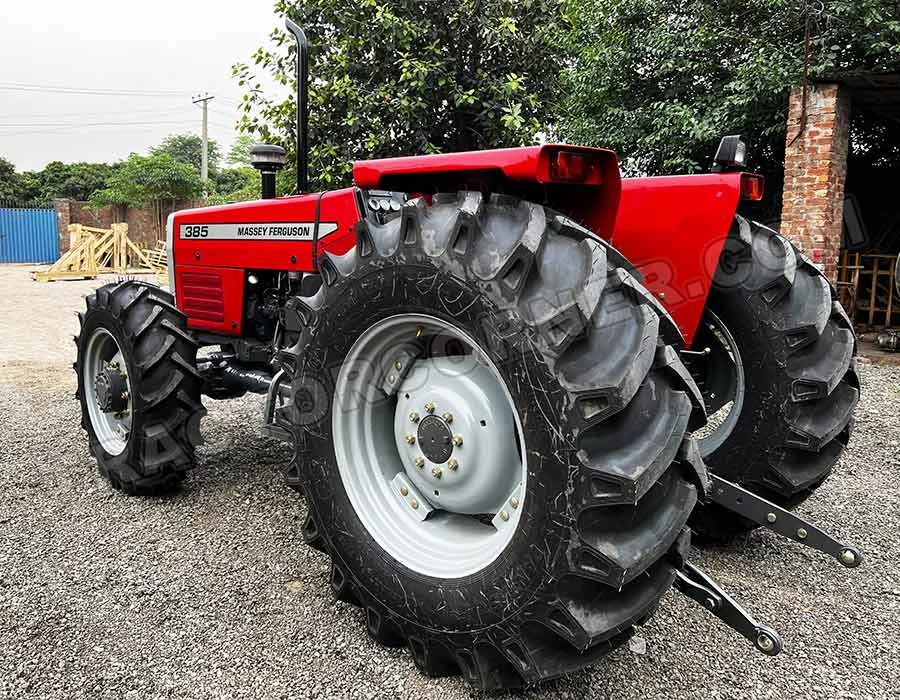

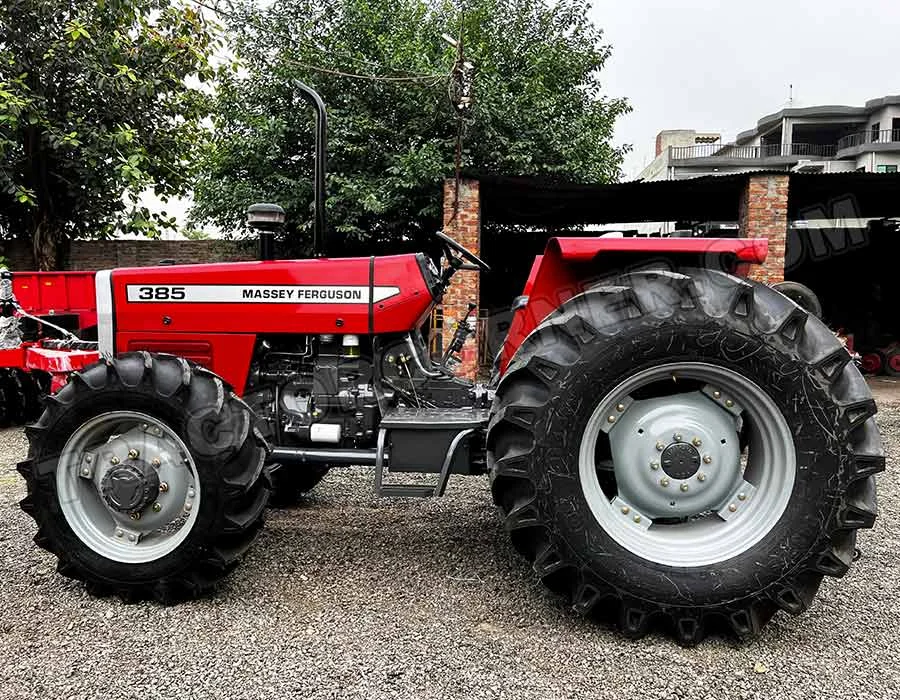

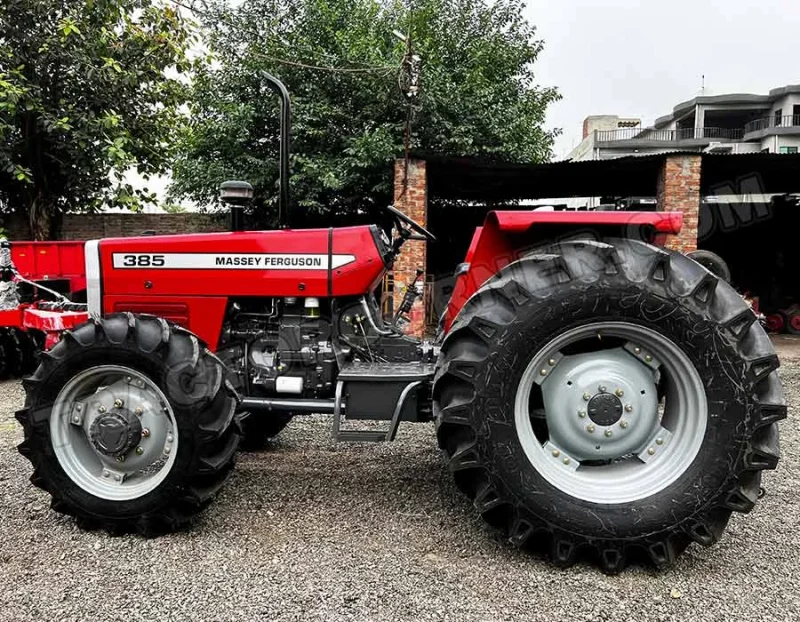

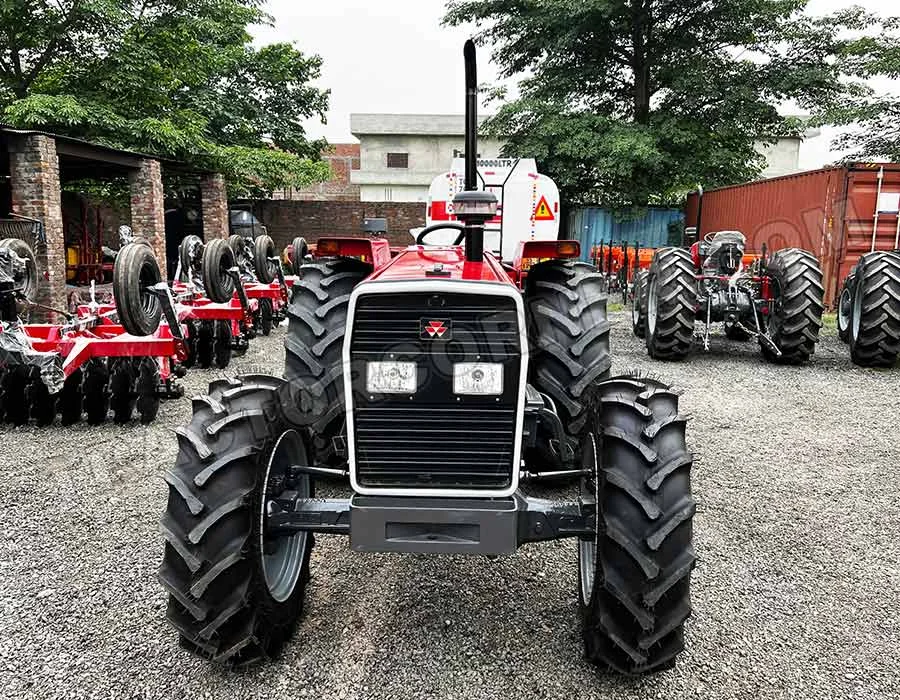

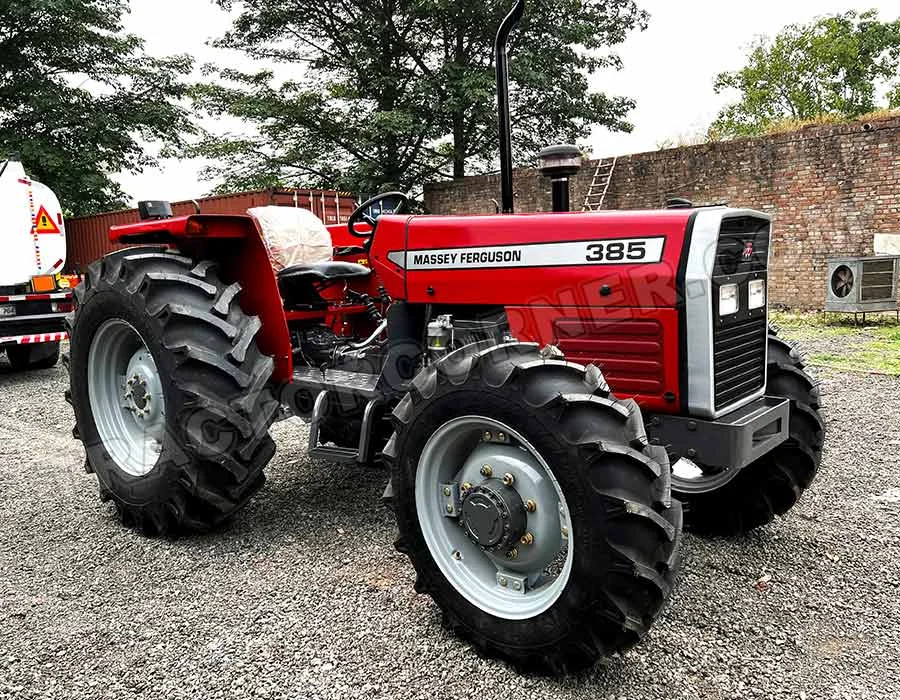

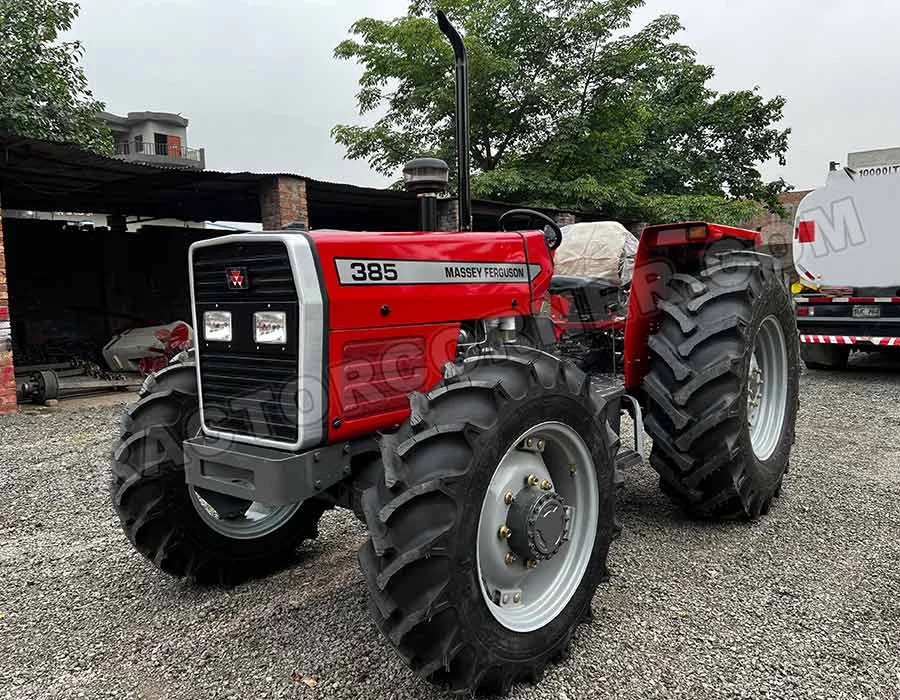

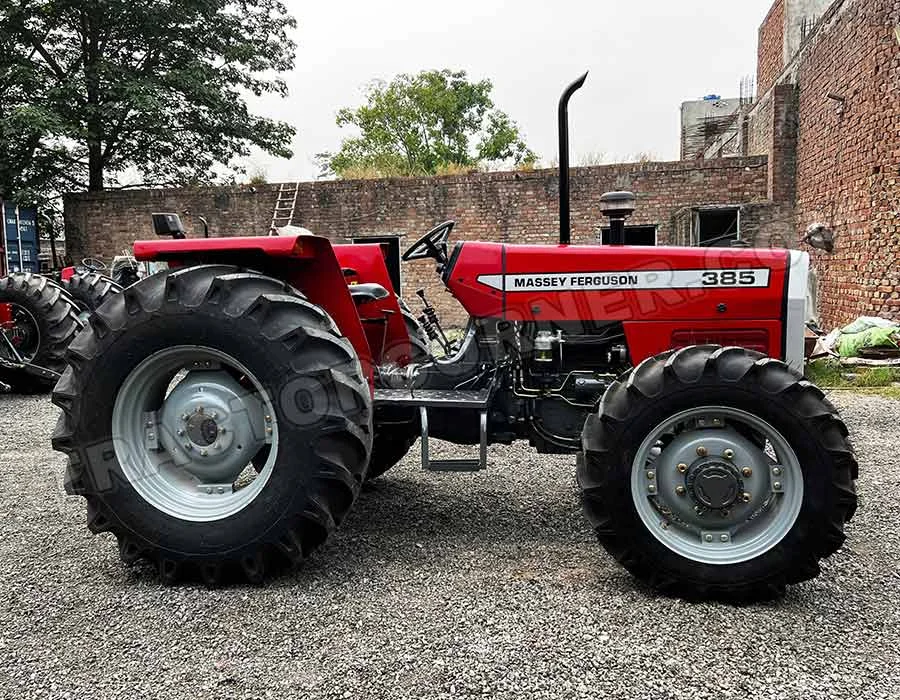

Massey Ferguson 385 4WD Tractor – Power and Reliability for Farmers in Trinidad and Tobago
The Massey Ferguson 385 4WD Tractor, available at Tractor Corner Trinidad and Tobago, is the ultimate solution for all your farming needs. Built with precision engineering and unmatched durability, it is designed to deliver exceptional performance in any terrain.
Key Features
Powerful Engine
Equipped with a robust 85-horsepower Perkins diesel engine, the Massey Ferguson 385 delivers unparalleled strength to tackle heavy-duty agricultural tasks with ease.
Advanced Technology
Its advanced 4WD system ensures superior traction, providing stability and control, even on rugged terrains or muddy fields.
Superior Durability
With its high-quality materials and sturdy build, this tractor guarantees long-lasting performance, reducing maintenance costs while enhancing productivity.
Outstanding Versatility
From ploughing and planting to transporting goods, the Massey Ferguson 385 4WD excels in various tasks, making it a valuable tool for farmers across Trinidad and Tobago.
Invest in the Massey Ferguson 385 4WD and experience efficient farming like never before. Visit Tractor Corner Trinidad and Tobago today and take a step towards greater productivity and success!
Performance | |
Engine Power at 2,200 rpm> | 85 (B.S) hp |
Torque at 1,600 rpm | 291 Nm |
PTO Power at 2,200 | 70 hp |
Engine Speed | |
*Certified at BS AU 141a 1971 | **Manufacturer’s estimate |
Electrics | |
Voltage | 12V, Negative Earth |
Battery | 110 Ah |
Starter/ Alternator | 2.8 kW / 45 Amp |
Transmission | |
Type | Sliding Spur |
Number of Gears | 8 Forward, 2 Reverse |
Road Speed at 2,200 | Engine RPM with 18.4/15-30 rear tyres |
Gear | Speed (km/hr) |
Forward 1 (First Low) | 2.7 |
Forward 2 | 3.7 |
Forward 3 | 5.1 |
Forward 4 | 6.8 |
Forward 5 (First High) | 10.4 |
Forward 6 | 15.2 |
Forward 7 | 20.8 |
Forward 8 | 27.9 |
Reverse 1 (Low) | 3.5 |
Reverse 2 (High) | 14.1 |
Hydraulics | |
Functions | Draft Control, Position Control Response Control, Constant Pumping |
Pump Type | 4 Piston, Ferguson Pump |
Oil Flow | 16.7 ltr/min |
Pressure | 21 Mpa (205 bars) at normal operating |
Lift Capacity with Lower | 2,145 kg |
Links Horizontal | |
Lower Links | With Cat. I & II Interchangeable Balls |
Rear Axle & Brakes | |
Axle Type | Straddle with apicyclic redution unit |
Brake Type | Oil immersed, Multi-disc |
Braking Area | 1.774 sq. cm |
Brake Actuation | Mechanical |
Parking Brake | Hand Lever Operated |
Tyres | |
Front | 12.4 / 11 – 24 (6PR) |
Rear | 18.4 / 15 – 30 (6PR) |
Clutch | |
Type | Dual |
Diameter | 305 x 254 mm |
Lining Material | Cerametallic |
Front Axle | |
Type | Parallel Drive |
Engagement | Mechanical |
Steering | |
Type | Hydrostatic |
Track Adjustment | |
Front Axle | 1,376 – 1,944 mm |
Rear Axle | 1,423 – 2,134 mm |
Engine | |
Make / Type | Diesel / 4.41 |
No. of Cylinders | 4 |
Injection | Direct |
Bore | 101 mm |
Stroke | 127 mm |
Capacity (litres) | 4.1L |
Compression Ratio | 15.3:1 |
Aspiration | Natural |
Starting Aid | Thermostart |
Throttle Control | Hand and Feet |
Cooling | Water |
Air Cleaner Type | Oil Bath |
Air Pre-Cleaner | Over Bonnet |
Fuel Filter | Dual, High Capacity |
Exhaust | Vertical Muffler |
Oil Cooler | Water Cooled |
Power Take Off | |
Type | Live |
Engine Speed at 540 pto rpm | 1,789 rpm |
Shaft Diameter | 35mm |
No. of Splines | 6 |
Instrumentation | |
Guages | Technometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature |
Warning Lights | Direction Indicators, Electric Charge, Headlight Main Beam, Low Engine Oil Pressure, 4WD Indication Lights & Auxiliary Socket |
Weight & Dimensions | With 12.4 / 11-24 Front & 18.4 / 15.30 rear with fuel, oil & water |
Weight | |
Gross Weight | 2,760 kg |
Dimensions | |
Wheel Base | 2,350 mm |
Overall Length | 3,810 mm |
Overall Width (Min) | 1,817 mm |
Height | |
Over Exhaust | 2,485 mm |
Over Steering Wheel | 1,781 mm |
Turning Circle | |
Without Brakes | 8,518 mm |
Ground Clearance | |
Under Gear Box | 501 mm |
Under 4WD Front Axle | 395 mm |
Capacities | |
Fuel Tank | 108.0L |
Engine Pump | 7.5 L |
Cooling System | 15.2L |
Hydrostatic Steering Reservior | 47.4L |
Hydraulic System | 2.0L |
Oil Bath Air-Cleaner | 0.7 L |
Brake Oil | 0.25L |
4WD Front Axle Differential | 5.6L |
Hub Each Side | 1.0L |
Standard Equipment | |
Weight frame without weights, standard tool box with set of tools, Top Link, Top Link End Cat-I, Cat I & II balls, Check Chains, Spring Suspension Seat, Flat Top Fender & Operator’s Manual | |
Optional Equipment | |
Front End Weights, Swinging Draw Bar, Sun Canopy, Pintle Hook | |
Operator Area | |
Seat | Cushioned |
Fenders | Flat Top |
Tool Box | Standard |
